Vehicle Details
- Stock #: 001817
- VIN: ZDMGAV1W7TB001817
- Mileage: 10
- Engine: V4 Granturismo, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled
Similar Vehicles
Frequently purchased together
Please select accessories from the list.
Click on the accessory link below to get more details.
Click on the accessory link below to get more details.
Awaken a Revelation.
The new Ducati XDiavel V4 challenges every convention, bringing that unmistakable Ducati DNA to the cruiser world. With an elegant, muscular, and uncompromising silhouette, it dominates the scene with its sculpted design and magnetic presence.
At its heart, the V4 Granturismo ensures exhilarating performance and smooth delivery with its 168 hp, boosting the riding pleasure without sacrificing comfort.Highlighted Features
- 1158 cc V4 Granturismo engine: The Granturismo is the V4 engine derived from the Desmosedici Stradale. Electrifying performance is guaranteed with 168 hp and 93 lb-ft of torque. Powerful and responsive at all speeds, it offers an exceptionally smooth experience right from low rpm. Versatile and easy to ride, it’s as comfortable on the highway as it is fun through the twists and turns.
- Forward footpegs and Sport Cruiser ergonomics: The XDiavel V4 riding position is relaxed, with a wide handlebar, forward footpegs, and a roomy spoon-shaped seat. At the same time, the handlebar/footpeg/seat triangulation offers the necessary control to exploit the bike’s dynamic qualities. For those wanting a sportier riding position and greater lean angles, the footpegs can be centrally repositioned using the kit available as an accessory.
- Sporty chassis: The fully adjustable suspension on the XDiavel V4 consists of a 50 mm USD fork (with adjustment of the compression and preload on the left stanchion and rebound on the right stanchion) and a shock with separate reservoir. Wheel travel is 4.7 in at the front and 5.7 in mm at the rear, 1.3 in more than the XDiavel 1260 for increased rider and passenger comfort.
- Two new color schemes, exclusive to XDiavel V4: Centro Stile Ducati developed the new Burning Red and Black Lava color schemes exclusively for XDiavel V4. They are designed to emphasize its volumes and sculpted lines.
- 240 mm rear wheel with 5-spoke rim: The single-sided swingarm draws attention to the rear wheel, which mounts the imposing 240/45 Pirelli Diablo Rosso III tire. The rim's five spokes form a star, reinforcing the reference to American muscle cars.
- Increased rider and passenger comfort: XDiavel V4 ensures a relaxed and comfortable riding position. 30.3 inches from the ground, the spoon-shaped seat typical of a cruiser is made more comfortable with an extra 2.1 inches of foam with respect to the XDiavel 1260. Passenger comfort is boosted with a seat that is 30% wider, 50% roomier lengthways, and with foam that is 0.9 in thicker at the sides. The rear hand grip, provided with the bike, can be easily mounted on the tail section for a more secure handhold.
- Specialized exhaust: Proudly on show, the four-exit exhaust dominates the scene. A great deal of work has gone into the sound quality, the Twin Pulse firing order of the V4 Granturismo producing a very characteristic sound, with the unmistakable Ducati two-tone timbre. A full racing exhaust system, not homologated for road use, is available as an accessory, boosting power by 11 hp and shaving off 24.2 lb of weight.
- Full LED lighting system: The front DRL with double C design has the typical Ducati naked shape and narrows towards the top, highlighting the sleek appearance of the front end and wrapping itself around a single bifunctional module that has a more aggressive and technical look while also showing off the heat sink as a design element. The turn signals are integrated and create a blade of light that makes for a smooth, homogeneous look.
- 6.9” color TFT display: The 6.9” color TFT display is well integrated with the forged body of the handlebar and boasts optical bonding technology for greater visibility in all lighting conditions. The Road info mode has been specifically redesigned to reflect unique cruiser style.
- Counter-rotating crankshaft for surprising handling: As on the MotoGP prototypes, the crankshaft is counter-rotating, meaning that it rotates in the opposite direction to the wheels. This compensates for the gyroscopic effect, ensures handling and agility through changes of direction, and reduces the tendency to wheelie during acceleration and braking.
Engine
- Type: V4 Granturismo, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid cooled
- Displacement: 1,158 cc (71 cu in)
- Bore x Stroke: 83 mm x 53.5 mm
- Compression Ratio: 14.0:1
- Power: 168 hp (124 kW) @ 10,750 rpm
- Torque: 93 lb ft (126 Nm, 12.8 kgm) @ 7,500 rpm
- Fuel Injection: Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system
- Exhaust: Stainless steel exhaust muffler with 4 exit pipes
Transmission
- Gearbox: 6 speed with Ducati Quick Shift up/down 2.0
- Primary drive: Straight cut gears; Ratio 1.80:1
- Ratio: 1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25
- Final drive: Chain, front sprocket z16, rear sprocket z43
- Clutch: Hydraulically controlled slipper and self-servo wet multiplate clutch
- :
Chassis
- Frame: Aluminum monocoque frame
- Front suspension: Ø 50 mm fully adjustable usd fork
- Front Wheel: Light alloy cast, 3.5" x 17"
- Front Tire: Pirelli Diablo Rosso III, 120/70 ZR17
- Rear suspension: Fully adjustable monoshock, aluminum single-sided swingarm
- Rear Wheel: Light alloy cast, 8.0" x 17"
- Rear Tire: Pirelli Diablo Rosso III, 240/45 ZR17
- Wheel Travel (Front/Rear): 4.7 in / 5.7 in (120 mm / 145 mm)
- Front Brake: 2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston calipers, radial master cylinder PR16/19, Cornering ABS
- Rear Brake: Ø 265 mm disc, Brembo 2-piston floating caliper, Cornering ABS
- Instrumentation: Digital unit with 6.9" TFT color display and Optical Bonding. 1,280 x 480 px resolution, 8:3 ratio
Dimensions and Weights
- Wet weight no fuel: 505 lb (229 kg)
- Seat Height: 30.3 in (770 mm)
- Wheelbase: 63.8 in (1,620 mm)
- Rake: 29°
- Trail: 4.9 in (124 mm)
- Fuel Tank Capacity: 5.3 US gal (20 l)
- Number of Seats: 2
Equipment
- Safety Equipment: Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, Ducati Brake Light
- Standard Equipment: Ducati Quick Shift 2.0, Ducati Power Launch, Cruise control, Hands-Free, 6.9" TFT color display, Ducati Multimedia System, Backlit handlebar switches, Full-LED lighting system, Turn-by-Turn navigation system
- Provided Equipment: Passenger handles
- Ready for: Mid footpegs kit
- :
Warranty
- Warranty: 24 months, unlimited mileage
- Annual Service: 12 months
- Oil Service: 9,000 miles (15,000 km) / 24 months
- Valve Clearance Check: 37,000 miles (60,000 km)
Emissions and Consumption
- Notes: Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information
Disclaimer
We will make our best efforts that posted prices are always accurate however, we are not responsible for any typographical or other errors that may appear on the site. If the posted price for a vehicle or service is incorrect due to a typographical or other error, such as data transmission, etc., this Dealership or Pixel Motion, Inc. are only responsible for the correct price, which will be provided as soon as we are made aware of such error(s). Ultimately, it is your responsibility to ensure that the information is 100% accurate with the Dealer. Posted vehicle images and descriptions on our website is representative to what is provided by our suppliers. Please note that the actual vehicle may slightly differ from its specifications and/or images. The Dealership is not responsible for any typographical, pricing, product specifications, advertising or shipping errors. Advertised prices and availability are subject to change without notice. In the event a vehicle is posted at an incorrect price due to these errors, or if an error in pricing was received from our suppliers, the Dealership reserves the right to refuse and/or cancel these orders.
Advertised pricing excludes applicable taxes title and licensing, dealer set up, destination, reconditioning and are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details.
WARNING: Operating, servicing and maintaining a passenger vehicle, an off-highway motor vehicle or a recreational marine vessel can expose you to chemicals including engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your vehicle or vessel in a well-ventilated area and wear gloves or wash your hands frequently when servicing your vehicle or vessel. For more information go to https://www.p65warnings.ca.gov/products/passenger-vehicle and https://www.p65warnings.ca.gov/products/marine.

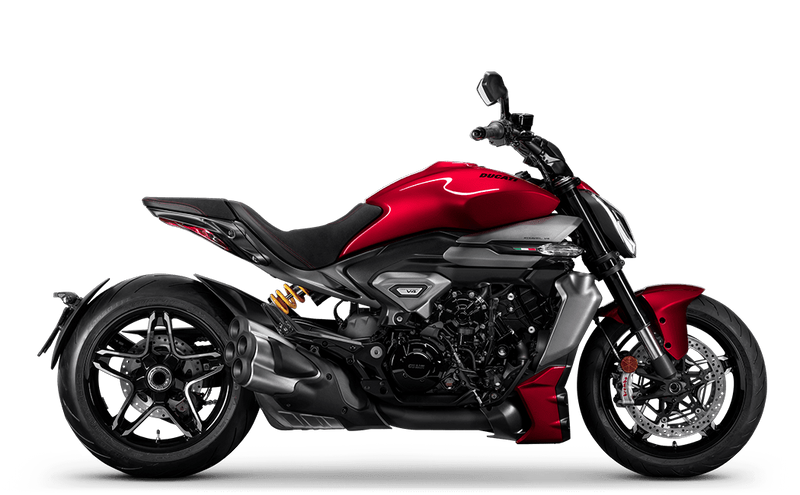

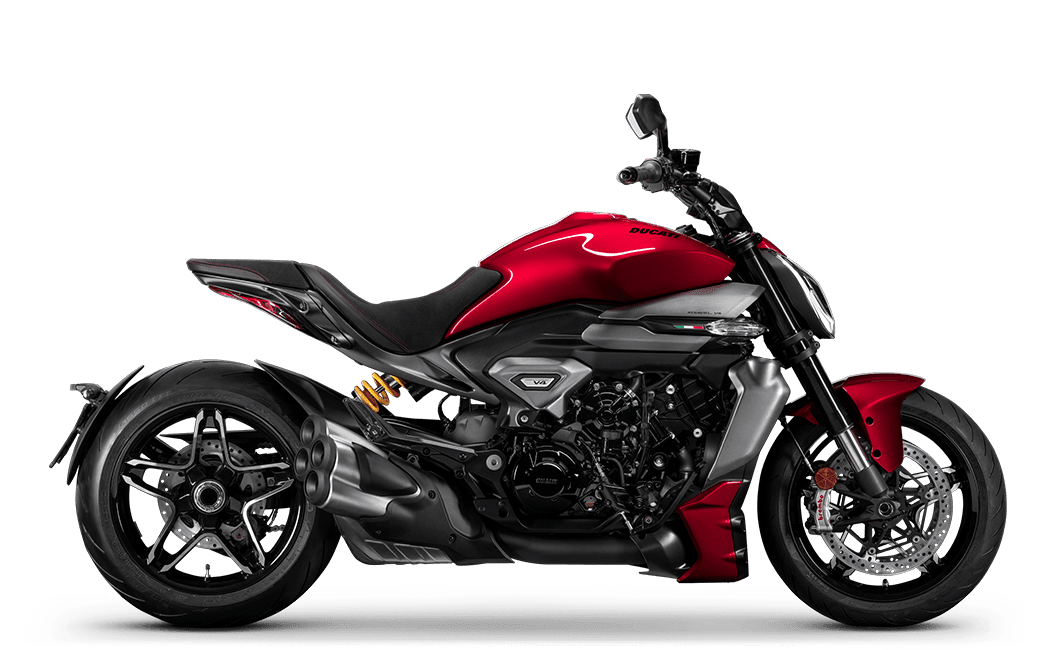

New 2026 Ducati X DIAVEL V4
